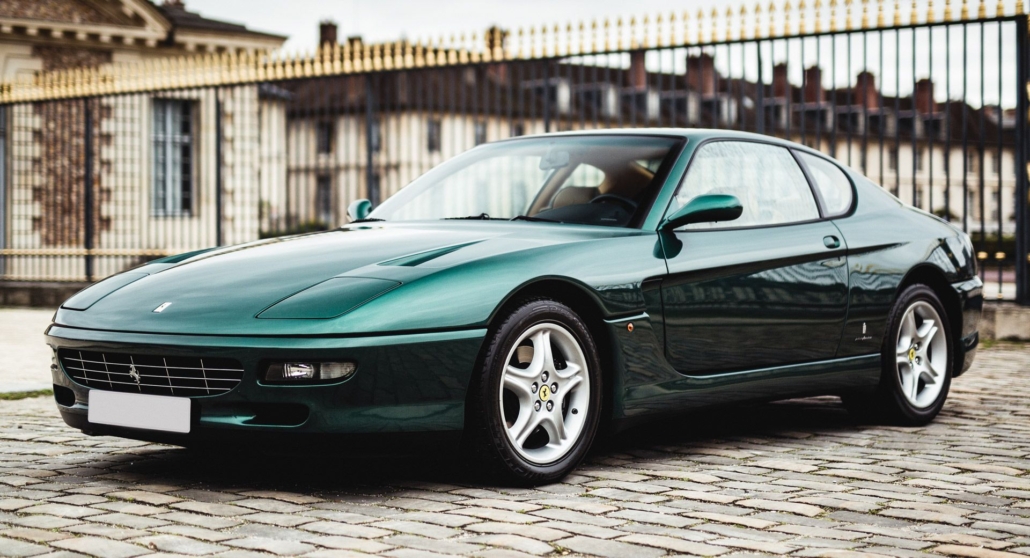

Ferrari 456 GT

The 456 GT took the luxury 2+2 coupé theme to new heights and saw Ferrari return to the front-engine concept for the first time since the 1968 365 GTB4.

The all-new 65° V12 provided unprecedented flexibility and power.  After a three year period without a V12 engine 2+2 model in the range, the 456 GT was announced on the occasion of Ferrari’s then Belgian concessionaire’s fortieth anniversary in September 1992, making its public show debut in Paris the following month.

The smooth rounded lines from the pen of Pininfarina drew praise from all sides, particularly the modernised reflection of the fabled 365 GTB/4 “Daytona” with the long bonnet, featuring retractable headlight pods, running into a set back cabin. Also inspired by the “Daytona” was the design treatment of the rear of the cabin envelope and tail. Thus although the shape was thoroughly modern, it contained retro trace elements to associate it with the company’s history.

The bodies were mounted on a 2600mm wheelbase chassis, which was 100mm less than the 412 2+2 model, with a front track of 1585mm and rear track of 1606mm. It was constructed in the traditional steel tube fashion, incorporating substructures to support mechanical and body components, bearing factory type reference F 116 CL.

The standard road wheels were stylised renditions of the traditional five spoke “star” alloy design, featuring elegant convex spokes and five bolt fixing. Independent suspension was provided all round, with front and rear anti roll bars, and electronically operated driver controlled variable shock absorber settings, plus hydraulic self levelling rear suspension.

The engine was completely new, the first brand new 12 cylinder unit since the flat twelve “Boxer” unit some two decades earlier, with factory type reference 116 B, and then 116 C.

It also marked a return to the old tradition of the model designation number (456), relating to the approximate swept volume of a single cylinder in cubic centimetres. The interior was sumptuously upholstered in leather as standard, with electronic adjustment facilities for the front seats, which slid forward automatically when the catch was released to afford access to the rear.

Ferrari 456 GT Technical Specifications

Year of Manufacture – 1992

ENGINE
type front, longitudinal 65° V12
bore/stroke 88 x 75 mm
unitary displacement 456.16 cc
total displacement 5473.91 cc
compression ratio 10.6 : 1
maximum power 325 kW (442 hp) at 6250 rpm
power per litre 81 hp/l
maximum torque 550 Nm (56 kgm) at 4500 rpm
valve actuation twin overhead camshafts per bank, two valves per cylinder
fuel feed Bosch Motronic M2.7 electronic injection
ignition Bosch Motronic M2.7 electronic static, single spark plug per cylinder
lubrication dry sump
clutch single-plate
CHASSIS
frame tubular steel
front suspension independent, unequal-length wishbones, coil springs over gas-filled telescopic shock absorbers, anti-roll bar
rear suspension self-levelling, independent, unequal-length wishbones, coil springs over gas-filled telescopic shock absorbers, anti-roll bar
brakes discs
transmission 6-speed + reverse
steering rack-and-pinion
fuel tank capacity 110 litres
front tyres 255/45 ZR 17
rear tyres 285/40 ZR 17
BODYWORK
type 2+2 coupé
length 4730 mm
width 1920 mm
height 1300 mm
wheelbase 2600 mm
front track 1585 mm
rear track 1606 mm
weight 1690 kg (dry)
PERFORMANCE
top speed over 300 km/h
acceleration 0-100 km/h 5.2 sec
0-400 m 13.3 sec
0-1000 m 23.3 sec
