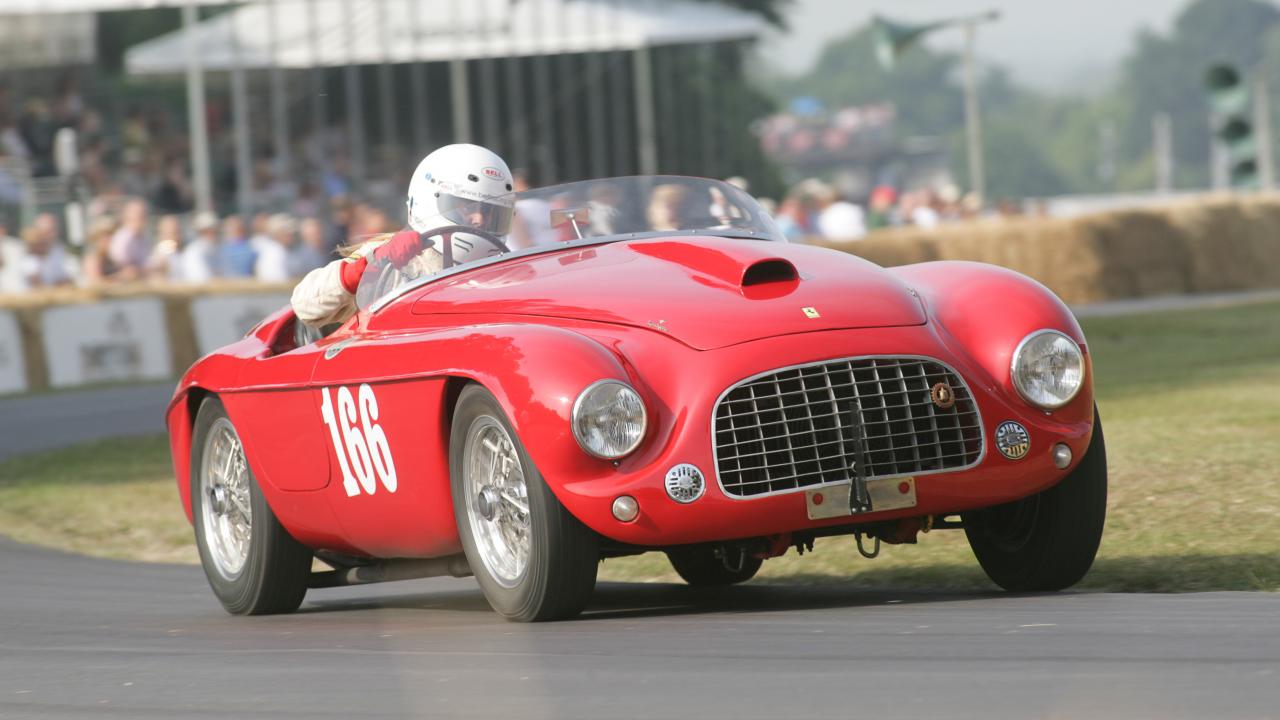

Ferrari 166 MM

Technically the 166 MM was very similar to rest of the 1940’s Ferrari’s, and shared the tubular frame that was characteristic for all of the company’s sports cars of this time . Suspension was equally straightforward with wishbones at the front and a live rear axle at the rear. Where the early Ferrari’s really excelled was in the engine compartment, which housed the beautifully Gioacchino Colombo designed V12. In its first configuration the tiny engine only displaced 1.5 litre, but in its third incarnation had grown in size to just under two litres or 166 cc per cylinder.

What set the 166 MM apart from the previous Ferrari racers was the new car’s body design and construction, for which a third party was commissioned. What the small car needed was a lightweight body; a task ideally suited for Touring of Milan whose Superleggera designs were the lightest available. At the car’s Turin launch the press quickly dubbed the Touring body style fitted ‘Barchetta’, which is Italian for little boat. The name stuck, as did the design, which today is the most famous Touring design ever fitted on a Ferrari chassis.

All 1940 Models:-

Production Decade Production Year Ferrari Model Ferrari Model Type
1940 1947 Ferrari 125 S Sport Prototypes
1940 1947 Ferrari 159 S Sport Prototypes
1940 1947-48 Ferrari 166 Inter GT
1940 1948-50 Ferrari 166 S Sport Prototypes
1940 1948-53 Ferrari 166 MM Sport Prototypes

Ferrari 166 MM Technical Specifications

Year of Manufacture – 1948

ENGINE
type front, longitudinal 60° V12
bore/stroke 60 x 58.8 mm
unitary displacement 166.25 cc
total displacement 1995.02 cc
compression ratio 10 : 1
maximum power 103 kW (140 hp) at 6600 rpm
power per litre 70 hp/l
maximum torque
valve actuation single overhead camshaft per bank, two valves per cylinder
fuel feed three Weber 32 DCF carburettors
ignition single spark plug per cylinder, two magnetos
lubrication wet sump
clutch single-plate
CHASSIS
frame tubular steel
front suspension independent, unequal-length wishbones, transverse leaf spring, hydraulic shock absorbers
rear suspension live axle, semi-elliptic springs, hydraulic shock absorbers, anti-roll bar
brakes drums
transmission 5-speed + reverse
steering worm and sector
fuel tank capacity 90 litres
front tyres 5.50 x 15
rear tyres 5.50 x 15
BODYWORK
type two-seater berlinetta or spider
length
width
height
wheelbase 2200 mm
front track 1250 mm
rear track 1200 mm
weight 650 kg (dry, spider)
PERFORMANCE
top speed 220 km/h
acceleration 0-100 km/h
0-400 m
0-1000 m

Ferrari 166 MM Valuations

With only 25 models of the 166 MM ever being made and even fewer around today – these cars have been known to reach more than £3 million in the right market, But the history of the car plays a massive part of the final valuation.
