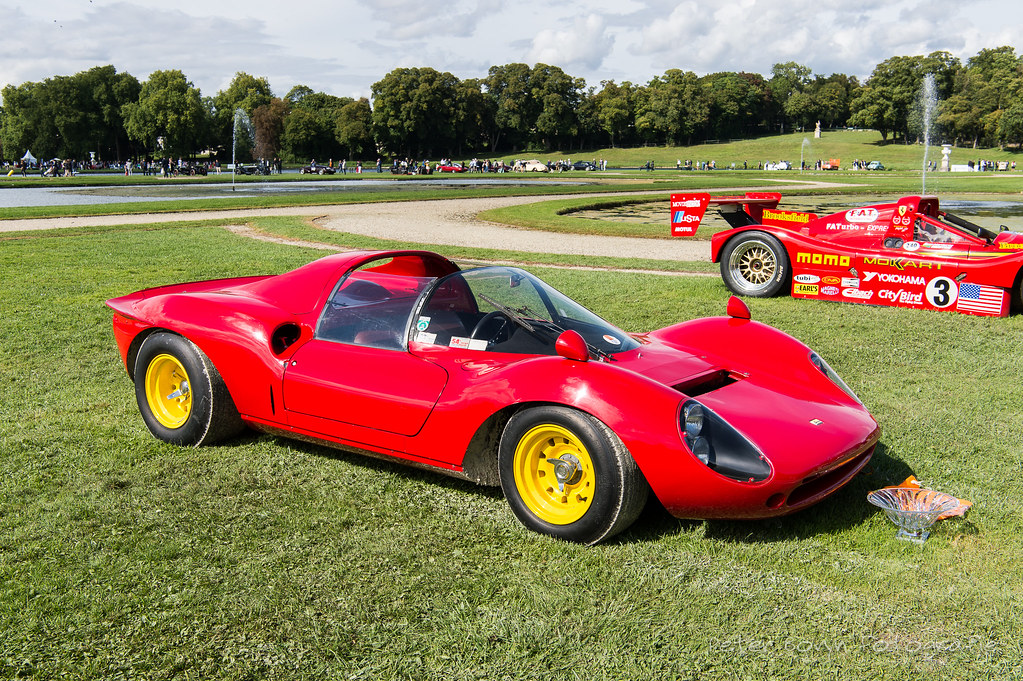

1965 Ferrari Dino 166P
The Dino name was revived for a prototype sports car of just 1,600 cc with styling reminiscent of the big P series models.
This fast, agile car was used for several endurance races and came home first in a race at Vallelunga with Baghetti at the wheel.
It also acquitted itself very well in the 1,000 km at the Nürburgring with a very honourable fourth overall. Driven by Baghetti and Biscaldi, it had actually been lying third ahead of a good number of cars with double and triple its displacement.
The development of this model would, in turn, result in the creation of the 206 P.
Ferrari Dino 166P Technical Specifications
Year of Manufacture – 1965
| ENGINE | ||
| type | rear, longitudinal 65° V6 | |
| bore/stroke | 77 x 57 mm | |
| unitary displacement | 265.42 cc | |
| total displacement | 1592.57 cc | |
| compression ratio | 11.5 : 1 | |
| maximum power | 129 kW (175 hp) at 9000 rpm | |
| power per litre | 110 hp/l | |
| maximum torque | – | |
| valve actuation | twin overhead camshafts per bank, two valves per cylinder | |
| fuel feed | three Weber 40 DCN/2 carburettors | |
| ignition | twin plugs, two coils | |
| lubrication | dry sump | |
| clutch | twin-plate | |
| CHASSIS | ||
| frame | tubular steel | |
| front suspension | independent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar | |
| rear suspension | independent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar | |
| brakes | discs | |
| transmission | 5-speed + reverse | |
| steering | rack-and-pinion | |
| fuel tank | capacity 100 litres | |
| front tyres | 5.50 x 13 | |
| rear tyres | 6.50 x 13 | |
| BODYWORK | ||
| type | two-seater berlinetta | |
| length | 3820 mm | |
| width | 1570 mm | |
| height | 960 mm | |
| wheelbase | 2280 mm | |
| front track | 1392 mm | |
| rear track | 1414 mm | |
| weight | 586 kg (dry) | |
| PERFORMANCE | ||
| top speed | – | |
| acceleration 0-100 km/h | – | |
| 0-400 m | – | |
| 0-1000 m | – | |
