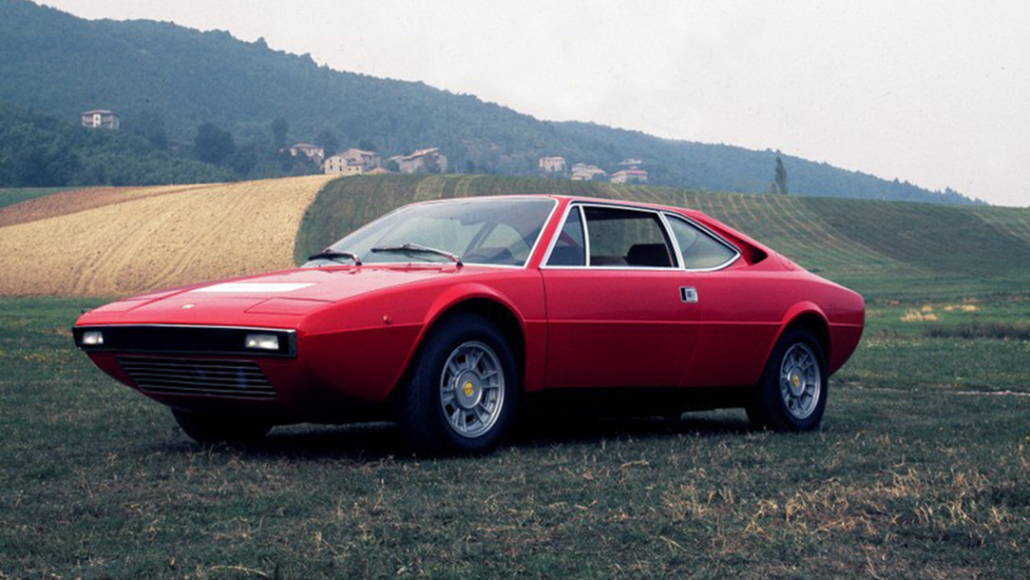

Ferrari Dino 208 GT4
The Dino 208 GT4 came about when Ferrari decided to fit a 2000cc engine in the body of the Dino 308 GT4.
This version of the Dino was destined primarily for the Italian market, because in those days taxation was particularly heavy on cars with engines above 2 litres, engine capacity was decreased by reducing the bore of the three litre model, but maintaining the same stroke.
208 Dino was produced specifically for the Italian market and had a mid-mounted 2 litre V8 engine as opposed to the 3 litre unit of the 308 GT4.
The raison d’etre of this being to fall below the Italian government’s 2 litre tax threshold, which was punitive on engine capacities above this level. As this was a specific market model, all were produced in left hand drive configuration. As with other models in the Dino series, the numbers in the model title referred to the engine total cubic capacity, and number of cylinders, in this case two litres and eight cylinders, with the figure 4 relating to the number of seats.
Bodywork was very similar to that of its 308 GT4 sister, a pronounced wedge shape from the pen of Bertone, which was very much in vogue with manufacturers of the period. Apart from the model badge on the boot lid, the easiest ways to distinguish a 208 GT4 from a 308 GT4, is the single exhaust pipe, instead of the latter’s quadruple arrangement, and the plain aluminium finish to the louvres on the front lid and engine cover for the 208 GT4, instead of satin black on the 308 GT4.
Ferrari Dino 208 GT4 Technical Specifications
Year of Manufacture – 1975
ENGINE | ||
type | rear, transverse, 90° V8 | |
bore/stroke | 66.8 x 71 mm | |
unitary displacement | 248.83 cc | |
total displacement | 1990.64 cc | |
compression ratio | 9 : 1 | |
maximum power | 125 kW (170 hp) at 7700 rpm | |
power per litre | 85 hp/l | |
maximum torque | – | |
valve actuation | twin overhead camshafts per bank, two valves per cylinder | |
fuel feed | four Weber 34 DCNF carburettors | |
ignition | single spark plug per cylinder, two coils | |
lubrication | wet sump | |
clutch | single-plate | |
CHASSIS | ||
frame | tubular steel | |
front suspension | independent, unequal-length wishbones, coil springs over telescopic shock absorbers, anti-roll bar | |
rear suspension | independent, unequal-length wishbones, coil springs over telescopic shock absorbers, anti-roll bar | |
brakes | discs | |
transmission | 5-speed + reverse | |
steering | rack-and-pinion | |
fuel tank | capacity 80 litres | |
front tyres | 195/70 VR 14 | |
rear tyres | 195/70 VR 14 | |
BODYWORK | ||
type | 2+2 coupé | |
length | 4300 mm | |
width | 1800 mm | |
height | 1180 mm | |
wheelbase | 2550 mm | |
front track | 1460 mm | |
rear track | 1460 mm | |
weight | 1150 kg (dry) | |
PERFORMANCE | ||
top speed | 220 km/h | |
acceleration 0-100 km/h | – | |
0-400 m | – | |
0-1000 m | – |
