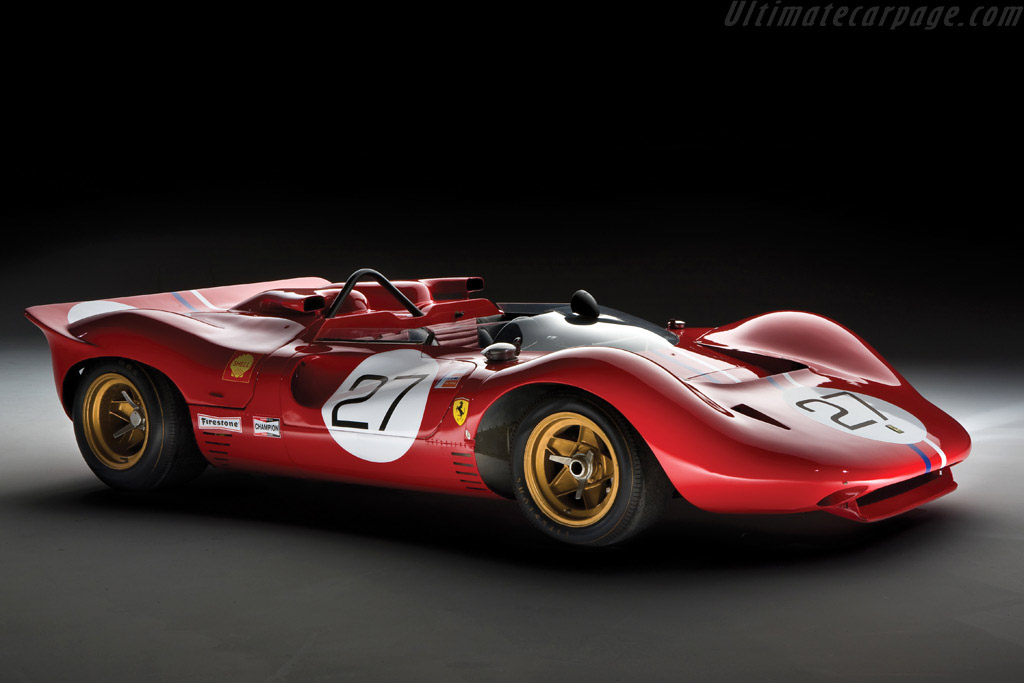

1967 Ferrari 350 Can Am
When sports car races were organised on the Canadian and American tracks in 1966, Chinetti asked Ferrari to come up with a suitable car.
A P3/4 series chassis mounted with a slightly larger engine than the original four-litre was selected for the role, and the car hit the tracks during the 1967 season.
However, there was such a difference in displacement compared to the American cars fitted with 7- and 8-litre engines, with their massive torque, that a second model was built for the following year. Accurate selection of the best shots of the 350 Can Am in high definition.
Ferrari 350 Can Am Technical Specifications
Year of Manufacture – 1967
ENGINE | ||
type | rear, longitudinal 60° V12 | |
bore/stroke | 79 x 71 mm | |
unitary displacement | 348.01 cc | |
total displacement | 4176.22 cc | |
compression ratio | 11 : 1 | |
maximum power | 353 kW (480 hp) at 8500 rpm | |
power per litre | 115 hp/l | |
maximum torque | – | |
valve actuation | Lucas indirect injection | |
fuel feed | twin overhead camshaft per bank, three valves per cylinder | |
ignition | twin spark plugs per cylinder, two coils | |
lubrication | dry sump | |
clutch | multi-plate | |
CHASSIS | ||
frame | tubular steel | |
front suspension | independent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar | |
rear suspension | independent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar | |
brakes | discs | |
transmission | 5-speed + reverse | |
steering | rack-and-pinion | |
fuel tank | – | |
front tyres | 475/1030 x 15 | |
rear tyres | 600/1230 x 15 | |
BODYWORK | ||
type | two-seater spider | |
length | 3950 mm | |
width | 1995 mm | |
height | 940 mm | |
wheelbase | 2400 mm | |
front track | 1488 mm | |
rear track | 1450 mm | |
weight | 700 kg (dry) | |
PERFORMANCE | ||
top speed | 315 km/h | |
acceleration 0-100 km/h | – | |
0-400 m | – | |
0-1000 m | – |
