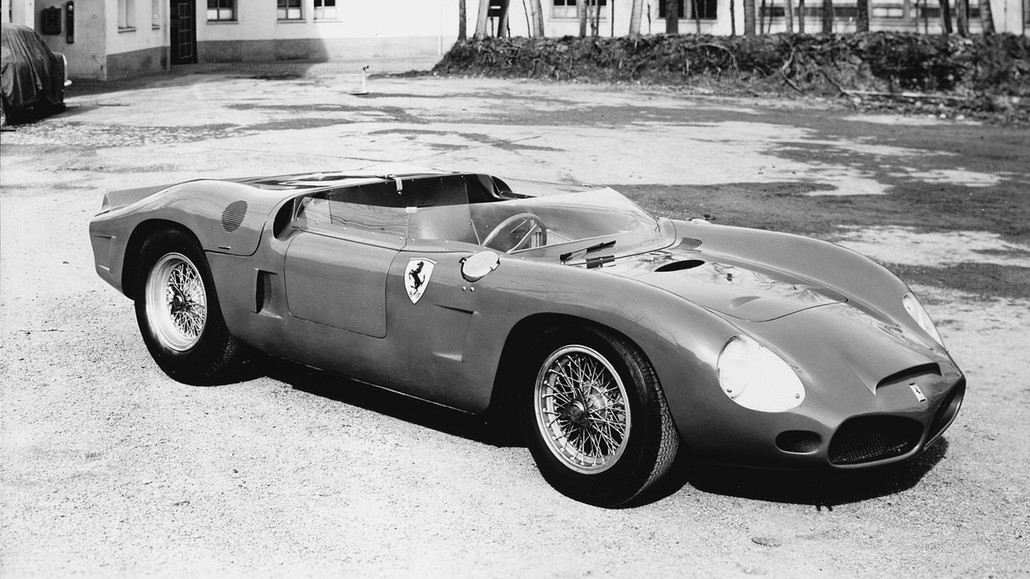

1962 Ferrari 286 SP

This second model that debuted at the 1962 press conference is very similar indeed to the 196 SP both in terms of dimensions and styling.

Bodywork design was built to comply with the new FIA regulations, with a windscreen and tail that we’re much lower than the previous 246 SP prototype’s.

Engine design was not a Dino, as the angle between the two cylinder banks was 60° and not 65°, and could really have been considered half a 12-cylinder engine of the time.

The 286 SP had no successor because the large-capacity V6 was soon discarded in favour of the new Chiti-designed V8 engines, that could deliver similar performance

Ferrari 286 SP Technical Specifications

Year of Manufacture – 1962

ENGINE
type rear, longitudinal 60° V6
bore/stroke 90 x 75 mm
unitary displacement 477.13 cc
total displacement 2862.78 cc
compression ratio 9.5 : 1
maximum power 191 kW (260 hp) at 6800 rpm
power per litre 91 hp/l
maximum torque
valve actuation single overhead camshaft per bank, two valves per cylinder
fuel feed three Weber 42 DCN carburettors
ignition single spark plug per cylinder, single coil
lubrication dry sump
clutch multi-plate
CHASSIS
frame tubular steel
front suspension independent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar
rear suspension independent, unequal-length wishbones, coil springs, telescopic shock absorbers
brakes discs
transmission 5-speed + reverse
steering rack-and-pinion
fuel tank
front tyres 5.25 x 15
rear tyres 7.00 x 15
BODYWORK
type two-seater spider
length 4060 mm
width 1480 mm
height 970 mm
wheelbase 2320 mm
front track
rear track
weight 620 kg (dry)
PERFORMANCE
top speed
acceleration 0-100 km/h
0-400 m
0-1000 m
