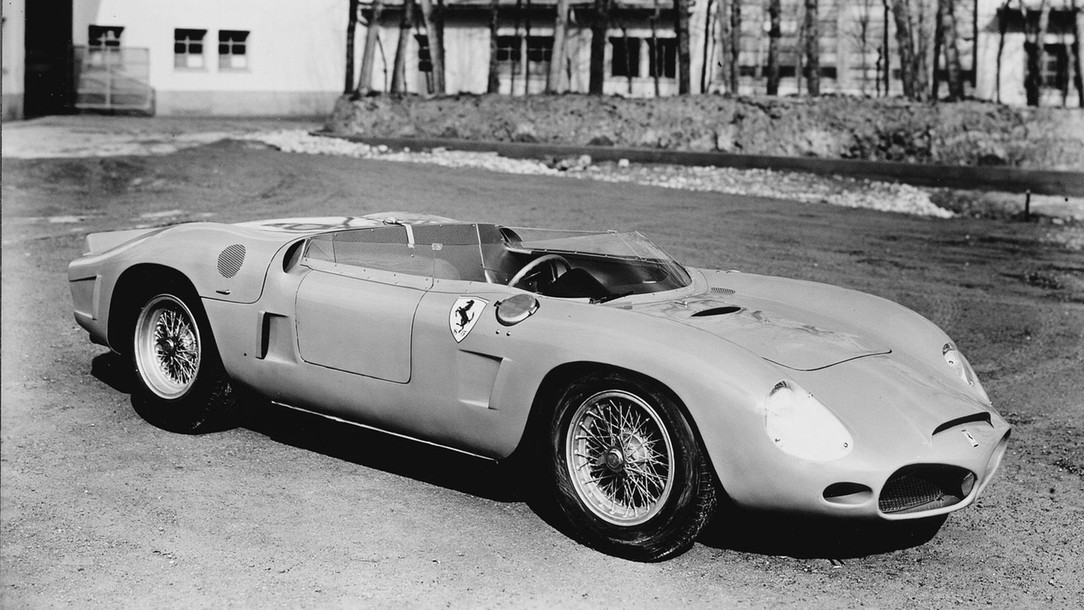

1962 Ferrari 248 SP

Ferrari 246 SP

This 2,458 cc barchetta was fitted with a single overhead camshaft V8 engine fed by four twin-choke Weber carburettors good for around 250 bhp.

The tubular space-frame featured all-round independent suspension while the bodywork was very similar to the 246 SP’s.

The 268 SP version was also fitted with a V8 engine the displacement of which, with the stroke increased to 71 mm, was upped to 2,650 cc.

Ferrari 248 SP Technical Specifications

Year of Manufacture – 1962

ENGINE
Type

a longitudinal engine is an internal combustion engine in which the crankshaft is oriented along the long axis of the vehicle, front to back.90° big-bore V8 are usually too long to fit in a FF Tranverse Engine bay

Rear, longitudinal, 90° V8
Bore/Stroke

A bore (or) cylinder bore is size in terms diameter of cylinder in which piston travels in a cylinder. Stroke length along with the bore diameter determines the engine displacement.

82 x 69.5 mm
Unitary Displacement

unitary displacement is the swept volume of one of the pistons inside on of the cylinders within an engine. It is calculated from the bore (diameter of the cylinder), stroke (distance the piston travels).

367.03 cc
Total displacement

total displacement is the combined swept volume of the pistons inside the cylinders of an engine. It is calculated from the bore (diameter of the cylinders), stroke (distance the piston travels), and number of cylinders.

2936.25 cc
Compression Ratio
7.7 : 1
Maximum Power
351.5 kW (478 hp) at 7000 rpm
Power per litre
163 hp/l
Maximum Torque
577 Nm (58.8 kgm) at 4000 rpm
Valve Actuation
Twin overhead camshafts per bank, four valves per cylinder
Fuel Feed
Weber-Marelli electronic injection, twin turbos
Ignition
Weber-Marelli electronic, single spark plug per cylinder
lubrication
Dry sump
Clutch
Twin-plate
CHASSIS
Frame
Tubular steel and composites
Front suspension
Independent, unequal-length wishbones, coil springs over telescopic shock absorbers, anti-roll bar
Rear suspension
Independent, unequal-length wishbones, coil springs over telescopic shock absorbers, anti-roll bar
Brakes
Ventilated Discs
Transmission
5-speed + reverse
Steering
Rack-and-pinion
Fuel tank
Capacity 120 litres
Front tyres
245/40 ZR 17
Rear tyres
335/35 ZR 17
BODYWORK
Type
Two-seater berlinetta
length
4358 mm
Width
1970 mm
Height
1124 mm
Wheelbase
2450 mm
Front track
1594 mm
Rear track
1606 mm
Weight
1100 kg (dry)
PERFORMANCE
Top speed
324 Km/h
Acceleration 0-100 km/h Distance in

“M”

4.1 sec
0-400 m
11.9 sec
0-1000 m
20.9 sec
