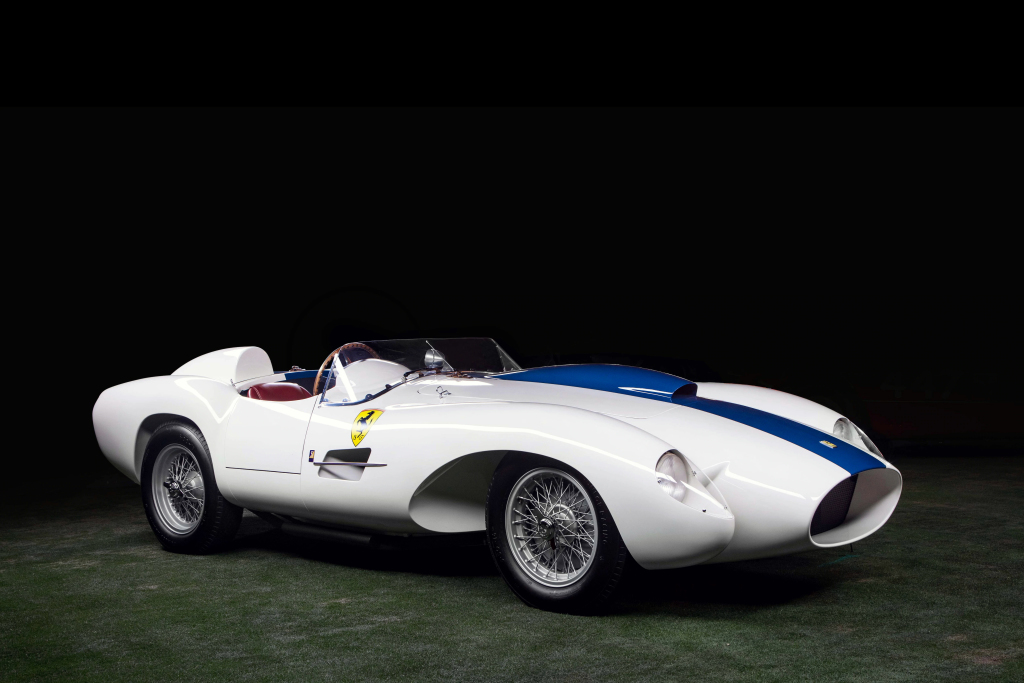

Ferrari 250 Monza
The 250 Monza was powered by the V12 engine of the 250 MM, mounted in the highly capable chassis of the 750 Monza.
The gearbox was mounted at the rear to improve the weight distribution, and the De Dion rear axle proved very effective.
Four different “Barchetta” bodies were built by Scaglietti and Pinin Farina. The car debuted with a victory at the Hyeres 12 Hour race of 1954, driven by Maurice Trintignant and Luigi Piotti.
Ferrari 250 Monza Technical Specifications
Year of Manufacture – 1954
ENGINE | ||
type | front, longitudinal in-line four | |
bore/stroke | 103 x 90 mm | |
unitary displacement | 749.90 cc | |
total displacement | 2999.62 cc | |
compression ratio | 8.6 : 1 | |
maximum power | 191 kW (260 hp) at 6000 rpm | |
power per litre | 87 hp/l | |
maximum torque | – | |
valve actuation | twin overhead camshafts per bank, two valves per cylinder | |
fuel feed | two Weber 58 DCOA/3 carburettors | |
ignition | two spark plugs per cylinder, two coils | |
lubrication | dry sump | |
clutch | twin-plate | |
CHASSIS | ||
frame | tubular steel | |
front suspension | independent, unequal-length wishbones, transverse leaf spring, Houdaille hydraulic shock absorbers | |
rear suspension | de Dion, twin radius arms, transverse leaf spring, Houdaille hydraulic shock absorbers | |
brakes | drums | |
transmission | 5-speed + reverse | |
steering | worm and sector | |
fuel tank | capacity 150 litres | |
front tyres | 5.25 x 16 | |
rear tyres | 6.00 x 16 | |
BODYWORK | ||
type | two-seater spider | |
length | – | |
width | – | |
height | – | |
wheelbase | 2250 mm | |
front track | 1278 mm | |
rear track | 1284 mm | |
weight | 760 kg (dry) | |
PERFORMANCE | ||
top speed | 264 km/h | |
acceleration 0-100 km/h | – | |
0-400 m | – | |
0-1000 m | – |
Ferrari 250 Monza Valuations
With Only 4 ever made – you will rarely see one of these cars go up for sale – the last sale that occurred was in 2002 for a price of £1.3 Million.
